To advance the power automation a 2 port version of the power jack was built using smaller components. This ended up being an issue as it got smaller there were many wifi connection problems stemming from having to power the wifi antenna. In an updated version we replaced the microprocessor with one that had onboard wifi.

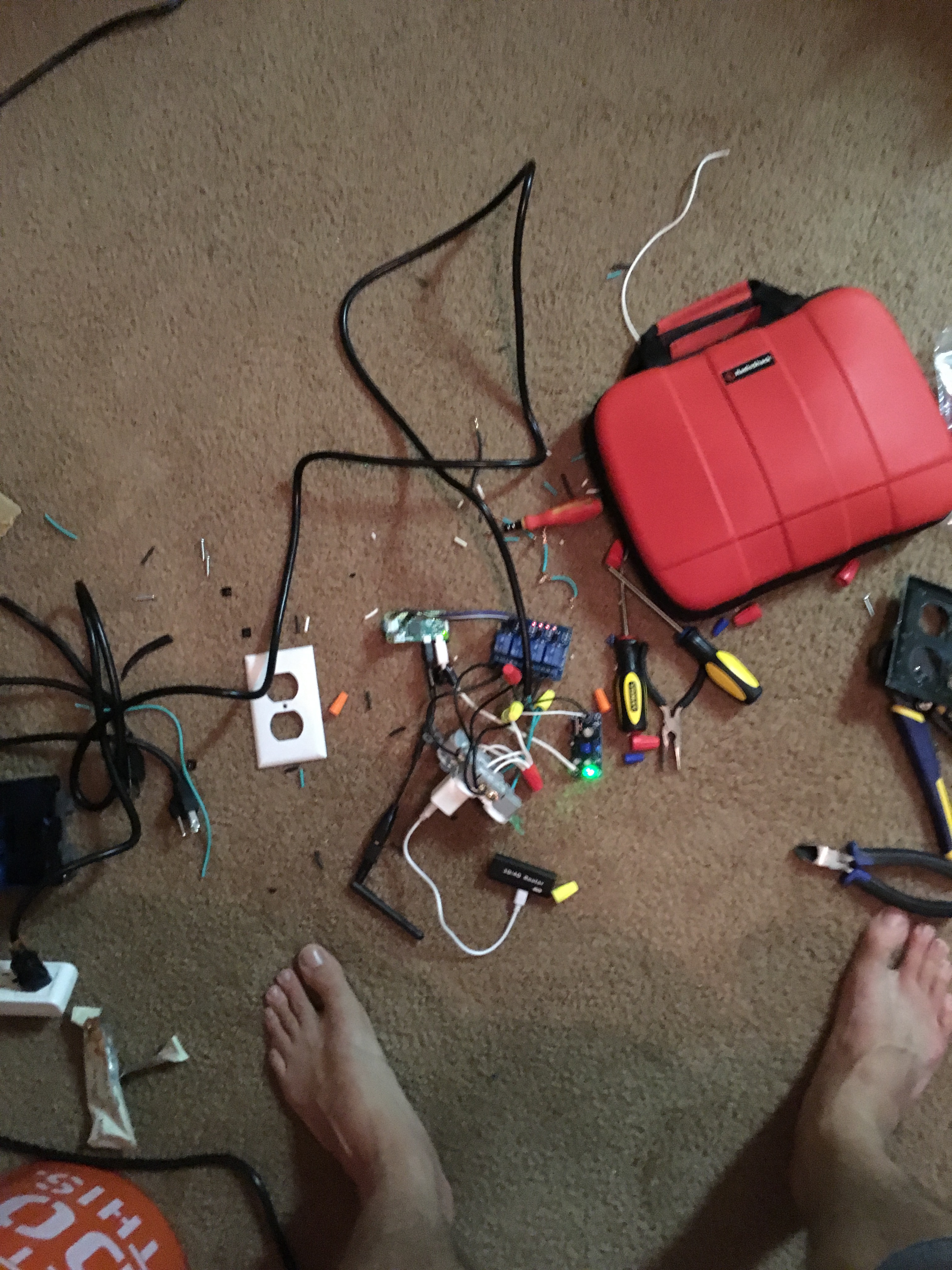

Putting the pieces together.

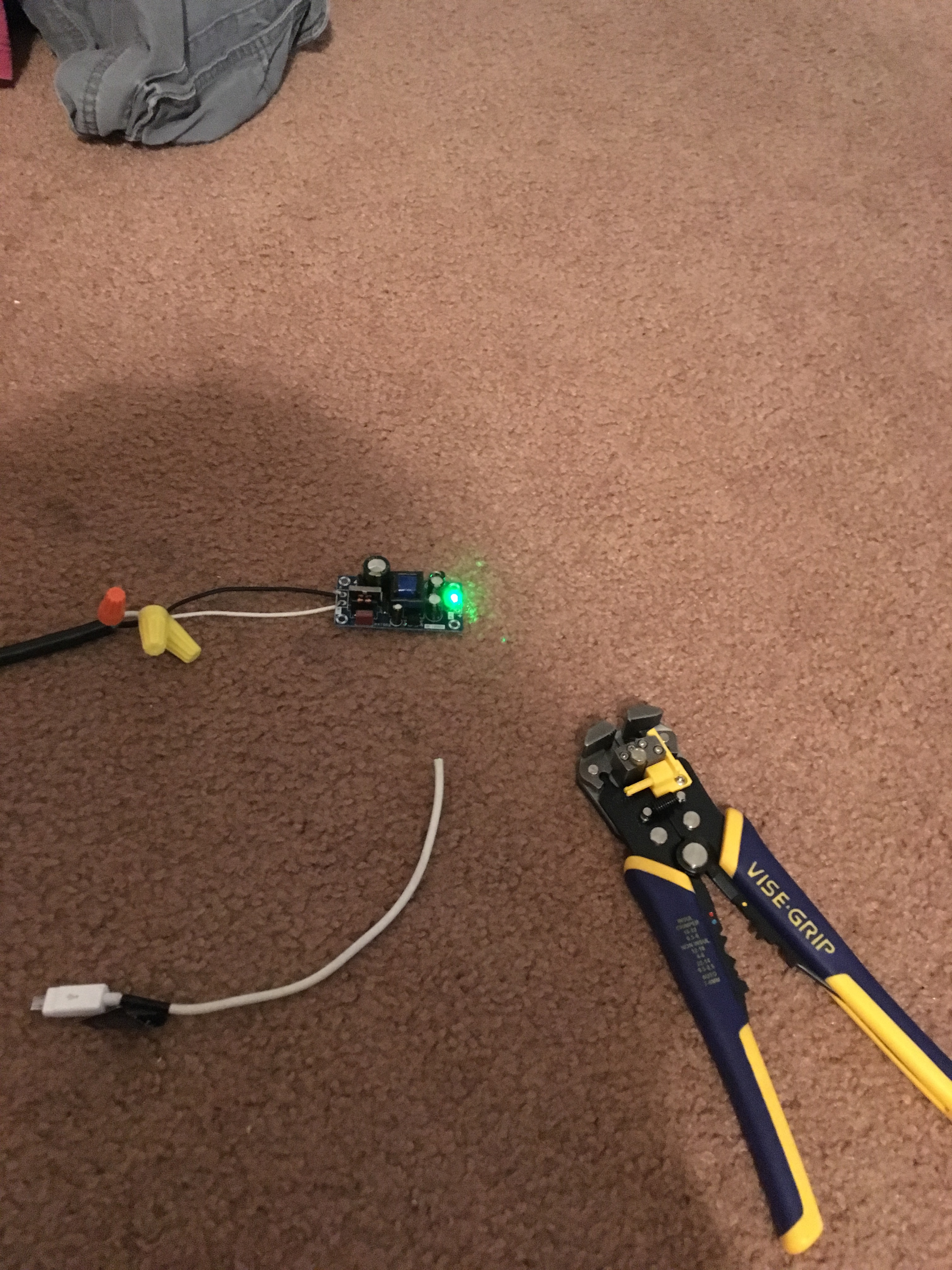

Hard twists for the high voltage.

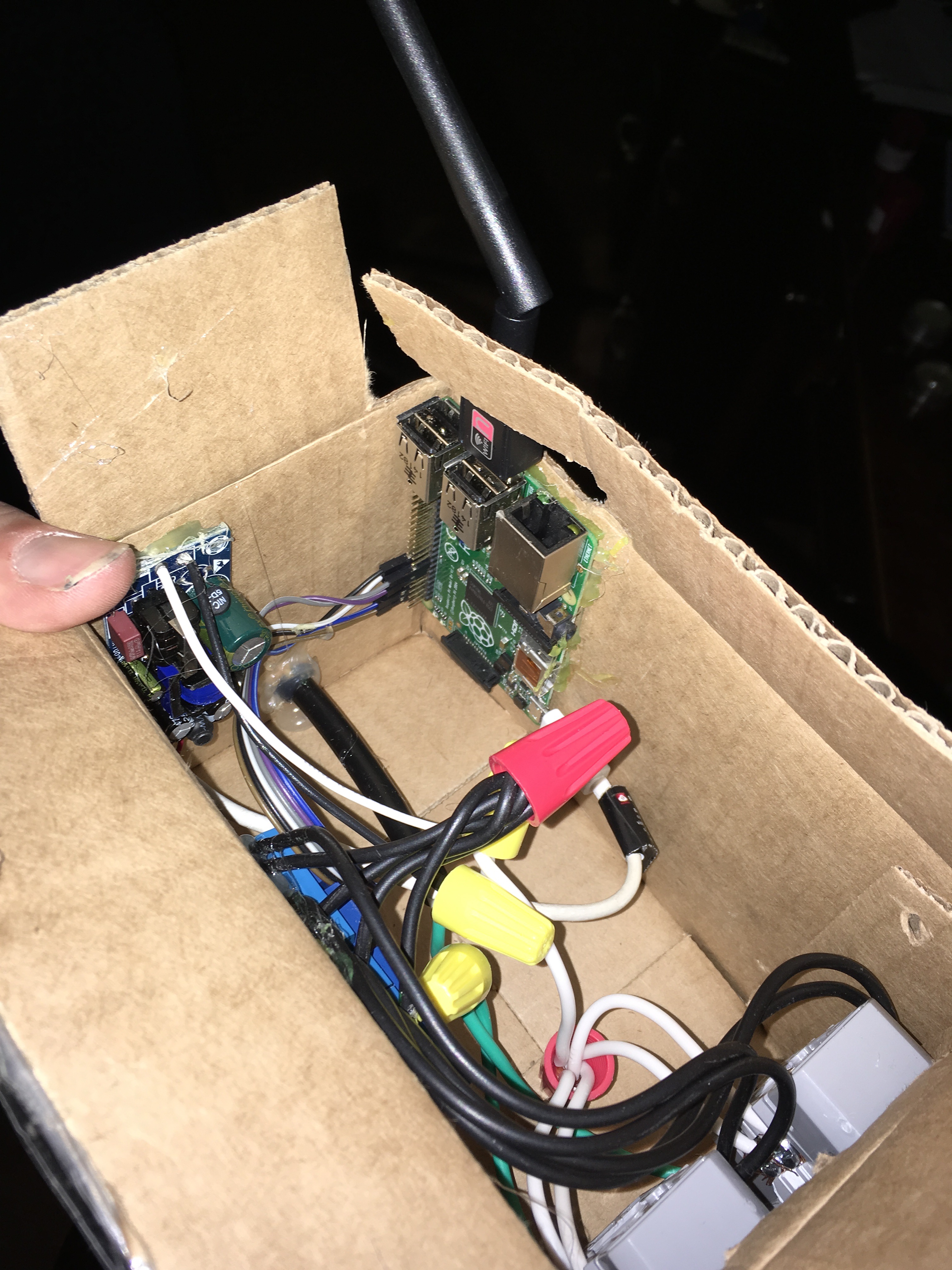

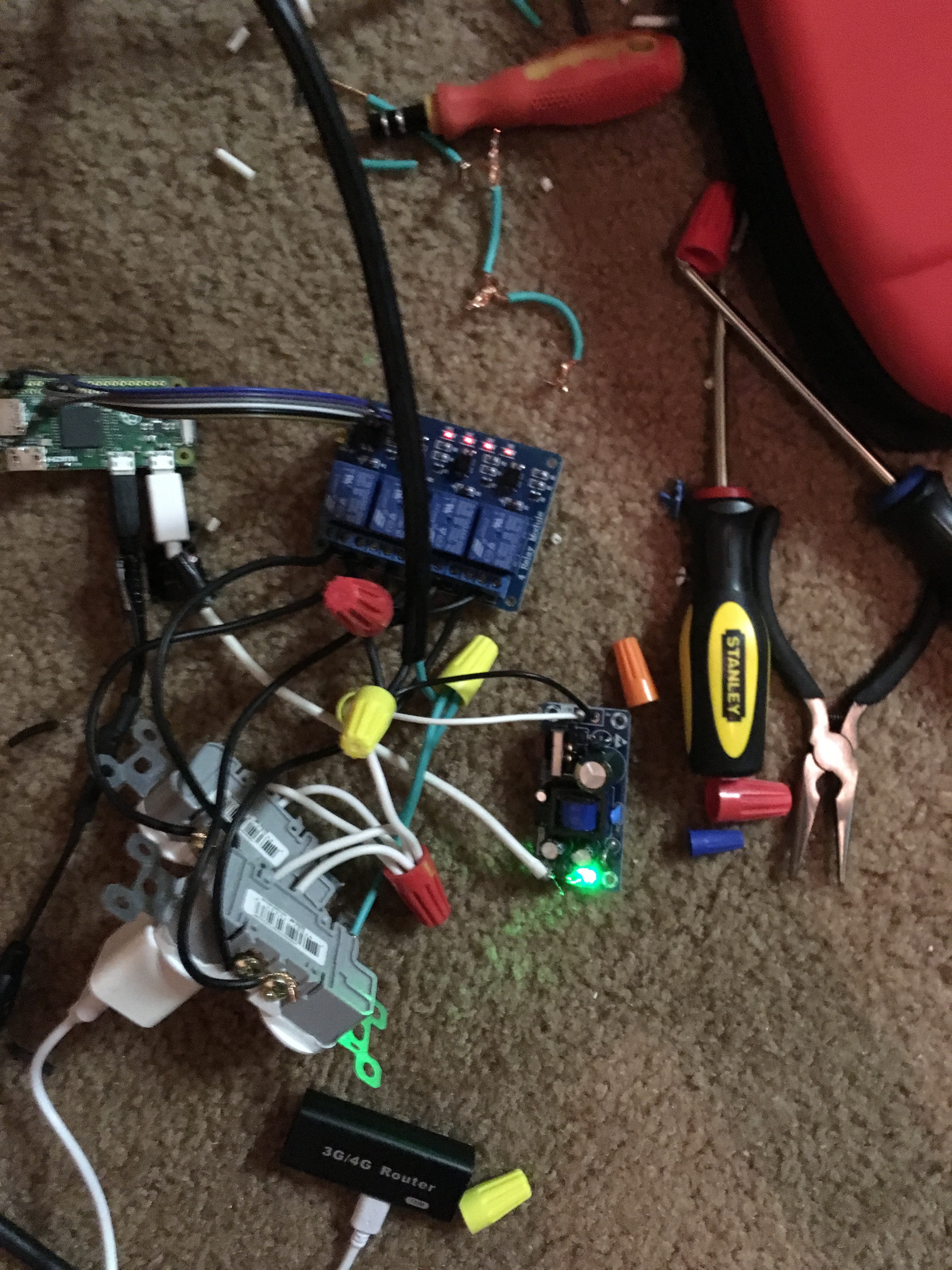

Wiring the microprocessor.

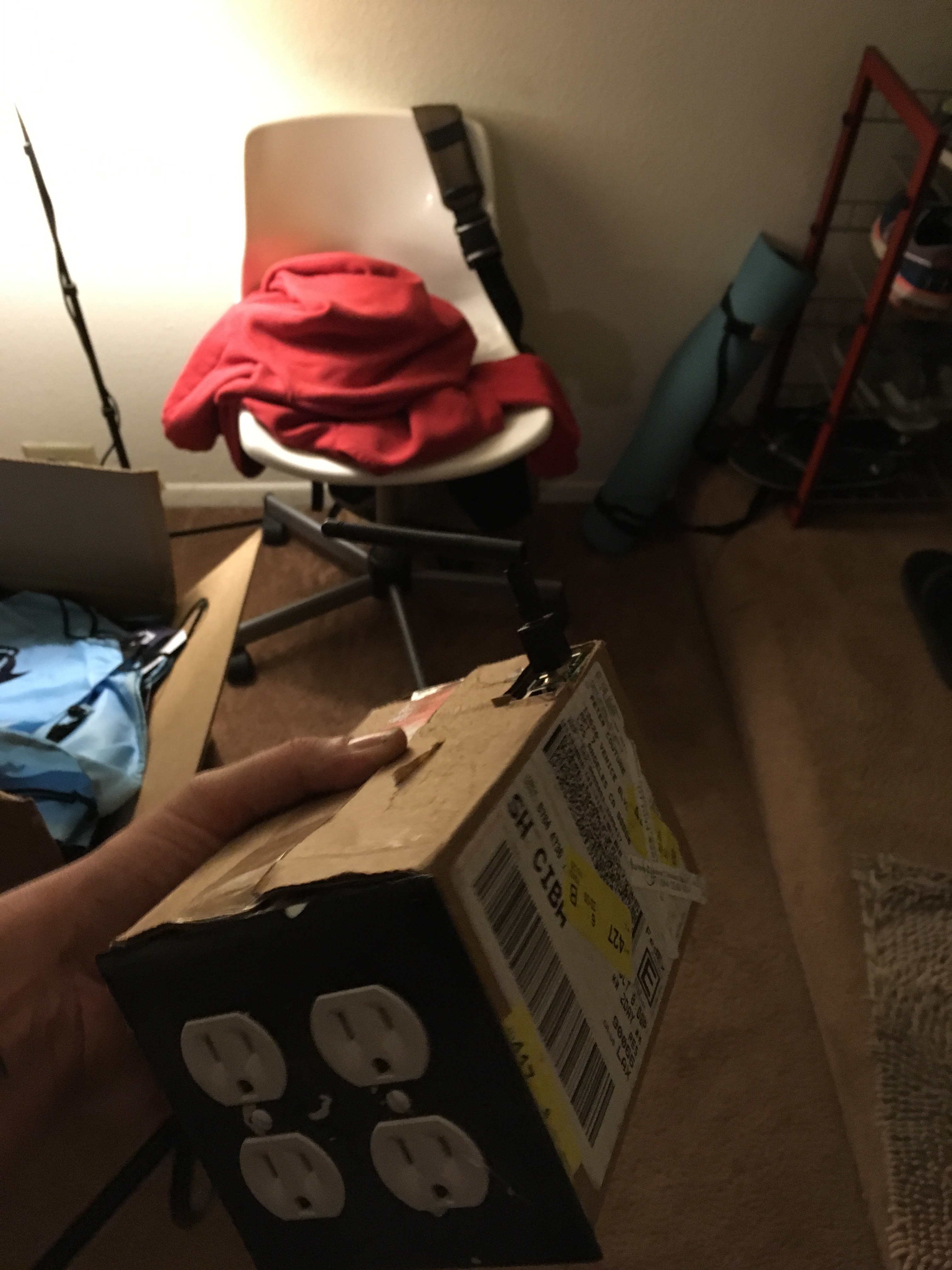

The new jack coming online but as a 4 port jack for now.

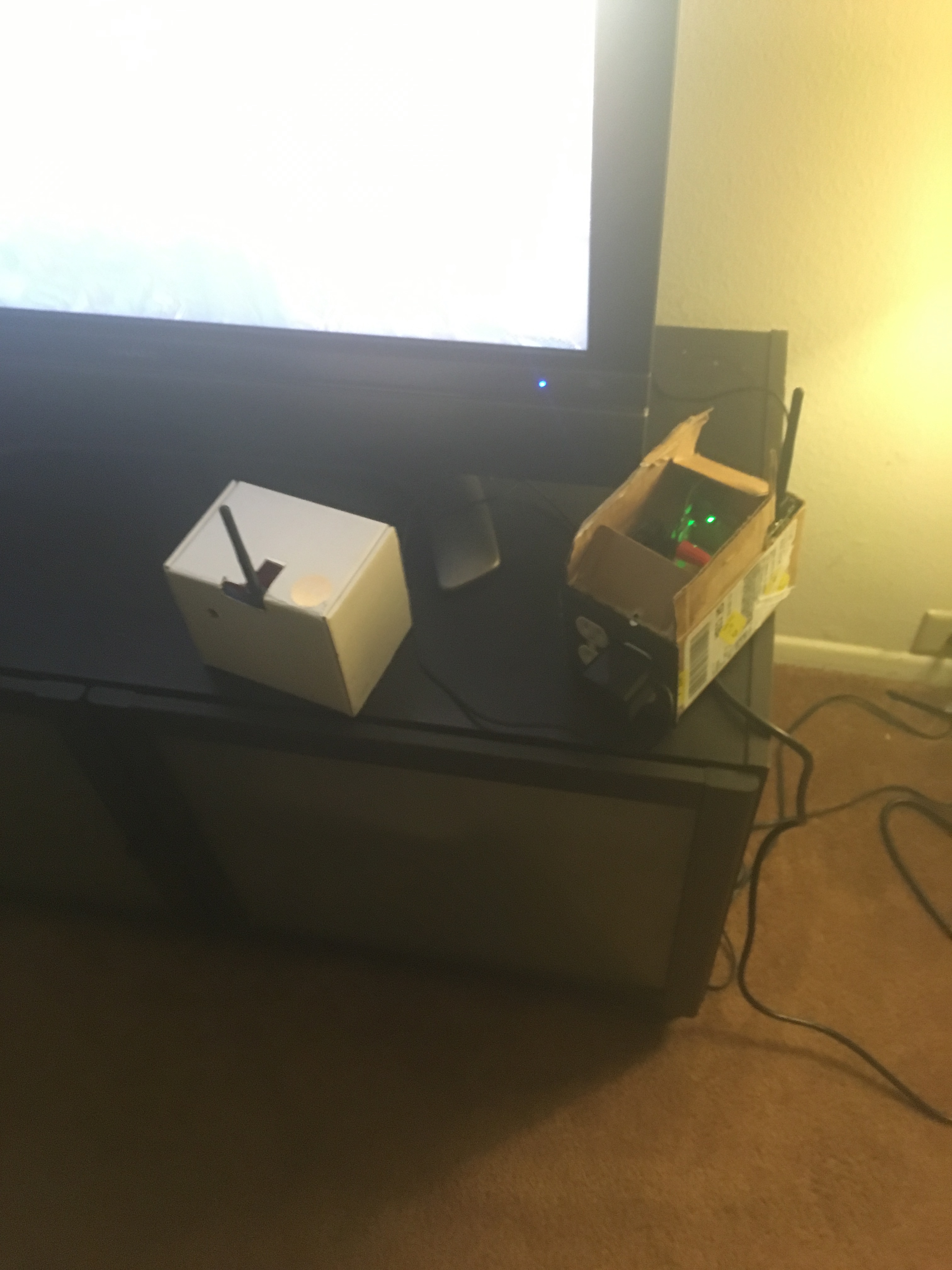

The final jack.

Made upgrades to the system in order to control the power jack better. The interface allows for activation and deactivation of each jack.

The interface added easier adding/removing of devices to the grow.

The box flicking the light on and off.

The prototype UI interface.
